C1-80 Control Panel
The C1 Panel is designed to monitor sensors mounted in a full range of environments from commercial premises through to industrial applications which require hazardous area sensing. Monitor locations are – public buildings, car parks, tunnels, breweries, boiler plant rooms, water treatment works, H&V control, manufacturing, process plants, horticulture, hotels, offices. Please note that the C1 panel is not certified for use in an hazardous environments and is strictly used only to monitor Gas detectors placed in hazardous environments, the panel should be placed inside a suitable IP rated or EX rated enclosure for this purpose. Each sensor connected to the C1 panel will continuously report back to the panel, in the event of a hazardous gas leak the panel LCD will visually display the gas concentration and preset High and Low alarm values, the internal 86 DB alarm buzzer and alarm relays will activate.
Description
PRODUCT FEATURES

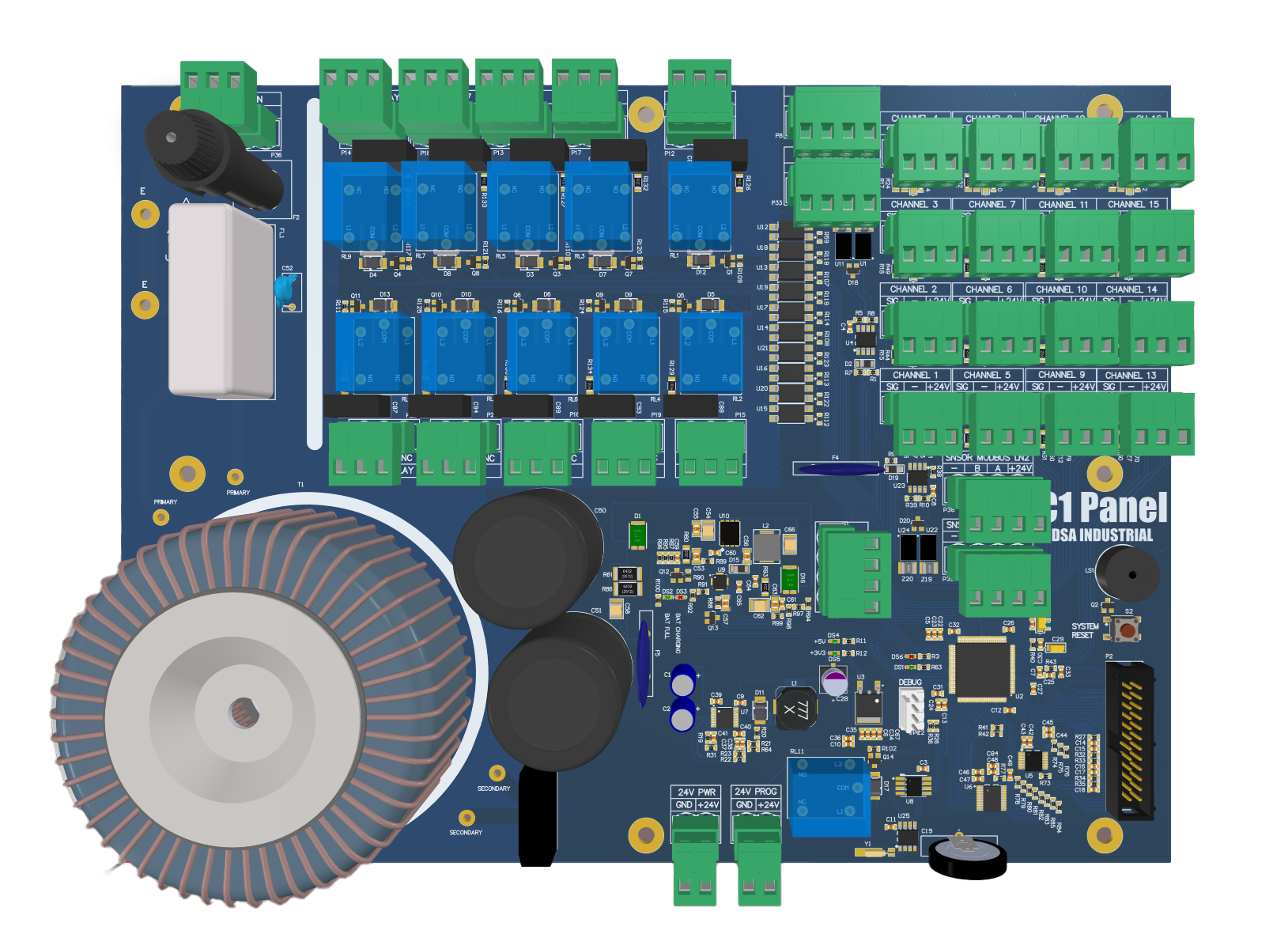

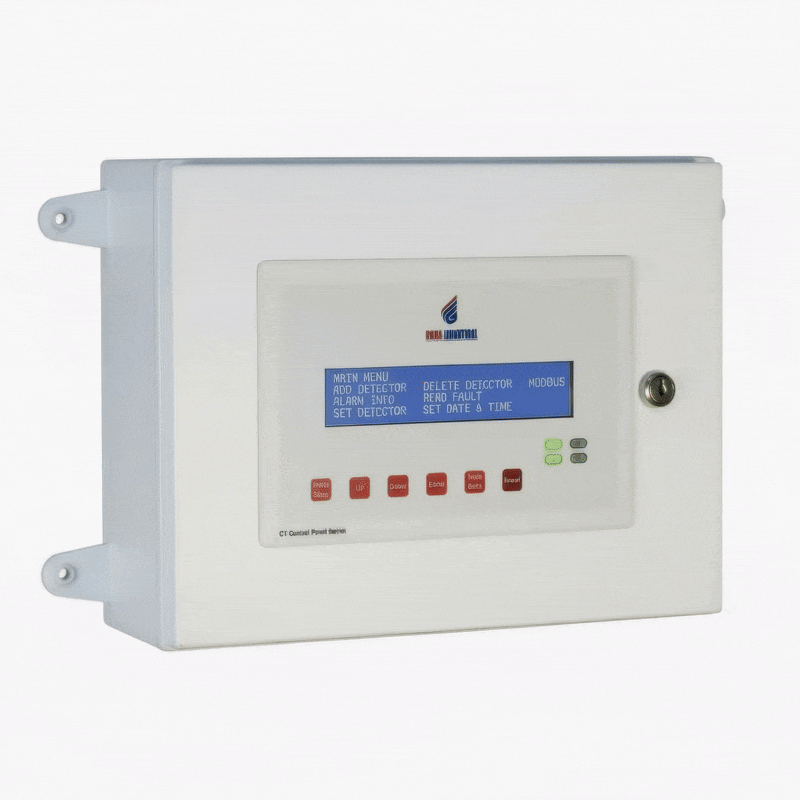

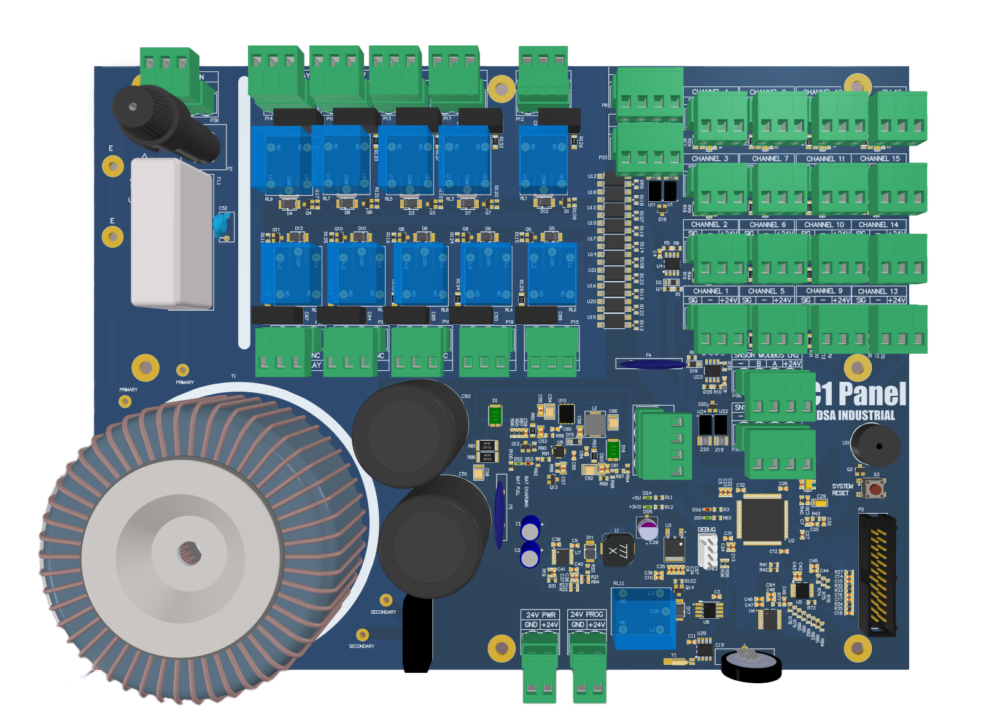

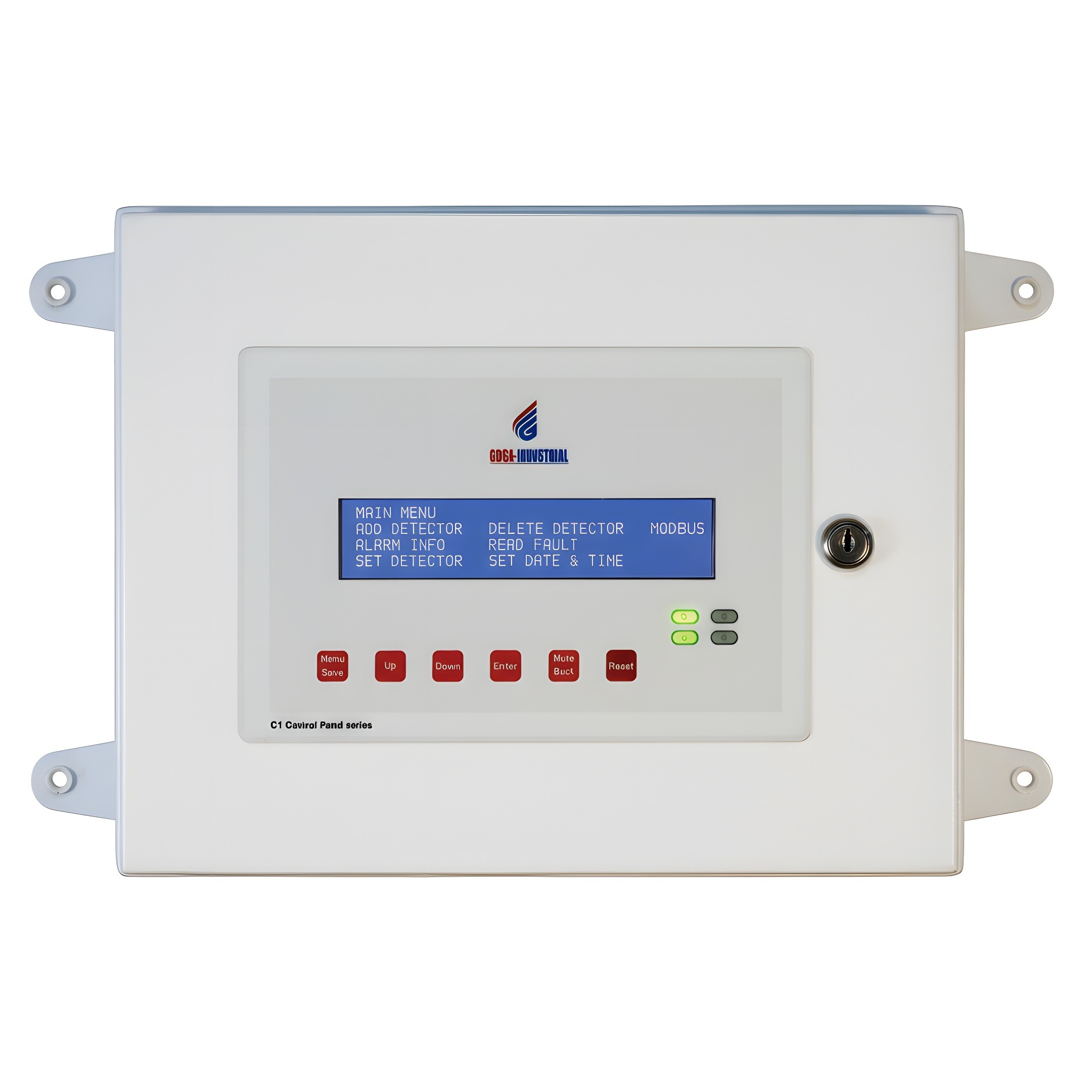

The C1-80 Channel control Panel is designed with a high quality lockable Ip64 enclosure to prevent tampering. The C1 panel is a Modbus 64 channel and a Direct sensor 16 Channel controllers with Modbus output. The C1 Panel is a system that supports a network of up to 16 control panels interfacing with repeater panels, relay panels and various GDSA gas sensors to be monitored on a IOT software system if required.
- IOT interface modules transmitting data to cloud
- Repeater panels interface on Modbus output
- Programmable relays to group sensor
- Self fault diagnostics and fault identifier
TECHNICAL SPECIFICATIONS
Power supply 220Vac / 50Hz
Direct sensors 16 Direct 4-20mA sensors 3wire
Addressable sensors 64 Modbus sensors 2 wire
Cable size 4-20mA 3 core wire 0.7mm Modbus 4 core wire 1.5mm
Internal DC supply 25-28Vdc 5Amp
External DC supply 25-28 Vdc 10Amp min ( Power Booster)
Alarm settings 4 Alarm settings High/Low/Fault/24V output Alarm
Available relays 8 selectable relays programmable for Group Configuration. 1 Common Relay preset for all High Alarms 1 Fault Relay for Cable break or sensor fault
Indication 4 Line 40 character LCD screen Alarm LED, Power LED , Fault LED
Enclosure Mild steel Powder coated enclosure with cabinet Lock IP 64 and optional IP 65
